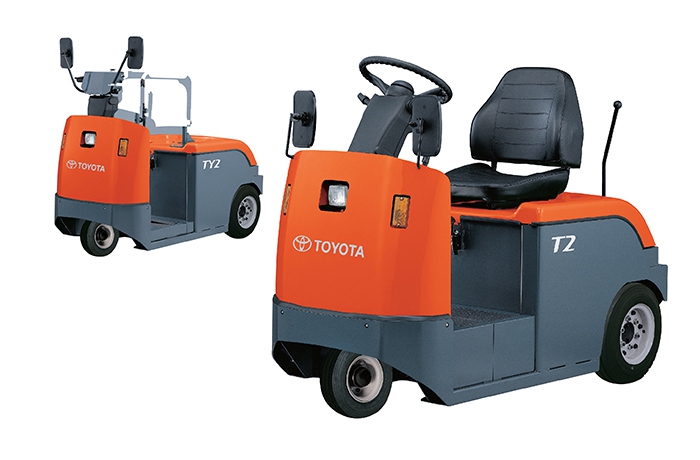

OVERVIEW

Towing tractors with outstanding performance which comes with designs that focus on cornering and driving stability, helping you efficiently deal with all space limitations. With affordable price, the tractors meet all business needs and are easy to use.

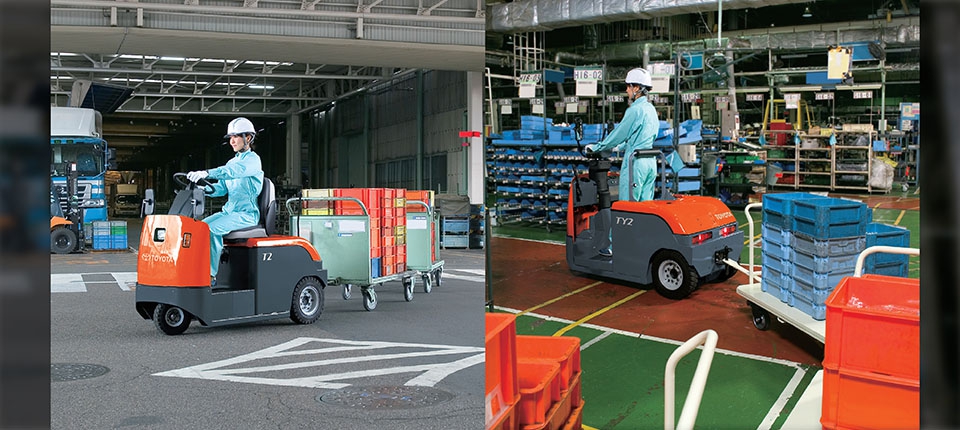

ACCESSIBLE IN ALL WORKSITES

The compact design allows for small turning radius even in a two-meter lane (right angle) and low ceiling spaces such as containers.

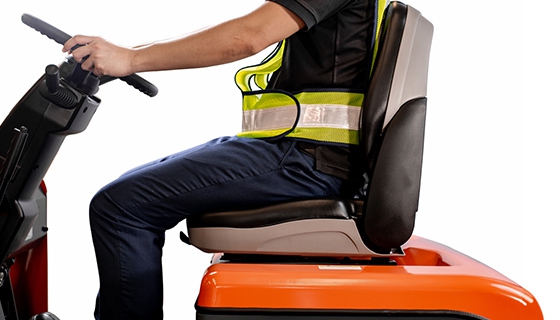

OPERATOR PRESENCE SENSING (OPS)

Safety innovation that detects user’s operations. Travel power will be cut when there is no operator driving the tractor, preventing accidents from sliding or power outages.

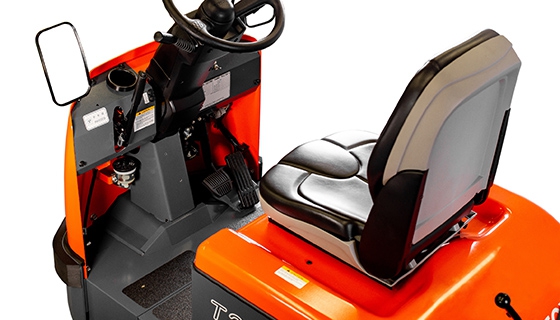

EASY AND CONVENIENT TO USE

Safety innovation that detects user’s operations. Travel power will be temporarily cut when there is no operator on board, preventing accidents from sliding or power outages.

SPECIFICATION

Models 4CBT2 4CBT3 4CBTK4 4CBTY2 4CBTYK4
Engine Type Electric
Operator Position Sit-down Sit-down Sit-down Stand-up Stand-up
Maximum Drawbar Pull 3 min. ratings kgf 200 300 400 200 400
Towed Weight 60 min. ratings kg 2000 3000 4000 2000 4000
Overall Width mm 800 800 800 800 800
Turning Radius (outside) mm 1600 1600 1600 1600 1600
Overall Height mm 1290 1290 1290 1240 1240
Overall Length w/ Hitch mm 1645 1645 1645 1645 1645
w/ o Hitch mm 1540 1540 1540 1540 1540
Voltage/Capacity Min V/Ah 48/129 48/129 48/220 48/129 48/220
Max V/Ah - - - - -
Electric Motors Drive kW AC 2.3 AC 2.3 AC 2.3 AC 2.3 AC 2.3
Control Type Transistor Chopper
