OVERVIEW

Distinct at every turn, allowing you to experience the most flexible towing tractors which are easy to use and maintain with the smallest turning radius from Toyota that allows you to effectively deal with all limited spaces. It is a new option which is suitable for industries that manufacture small products.

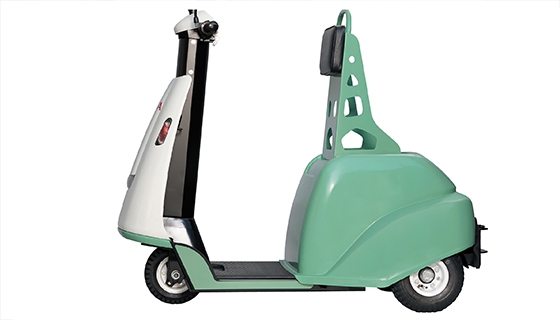

COMPACT BODY

The ultimate tractor design that is the smallest and lightest one among the towing tractor series, allowing you to safely access all worksites, even the space for turning is less than two meters wide.

OPERATOR PRESENCE SENSING (OPS)

Safety innovation that detects user’s operations. Travel power will be temporarily cut when there is no operator on board, preventing accidents from sliding or power outages.

EASY AND CONVENIENT TO USE

Innovative design of operator’s compartment that is wide and comfortable and supports all operating postures, reducing fatigue from long daily operations.

SPECIFICATION

Models 7CBT06 7CBTY06
Engine Type Electric
Operator Position Sit-down Stand-up
Maximum Drawbar Pull 3 min. ratings kgf 45 45
Towed Weight 60 min. ratings kg 600 600
Overall Width mm 745 745
Turning Radius (outside) mm 1480 1510
Overall Height mm 995 1195
Overall Length w/ Hitch mm 1460 1505
w/ o Hitch mm 1370 1415
Voltage/Capacity Min V/Ah 24/100 24/100
Max V/Ah - -
Electric Motors Drive kW DC 0.4 DC 0.4
Control Type Field effect transistor chopper
