OVERVIEW

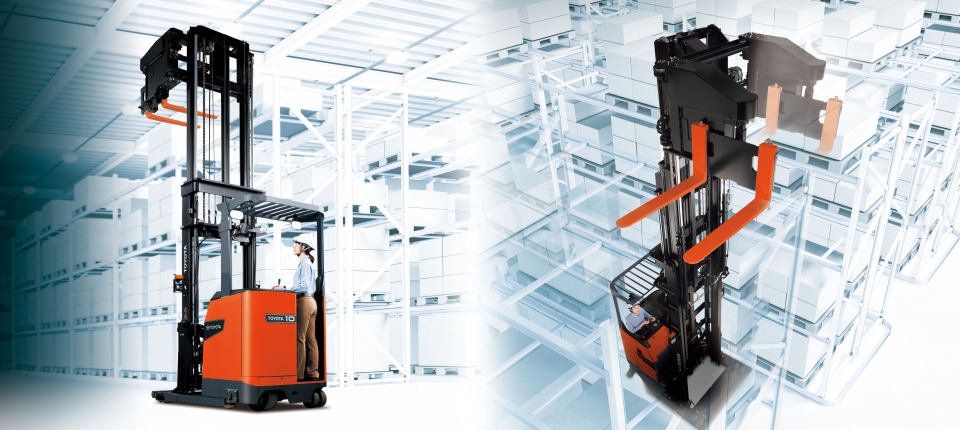

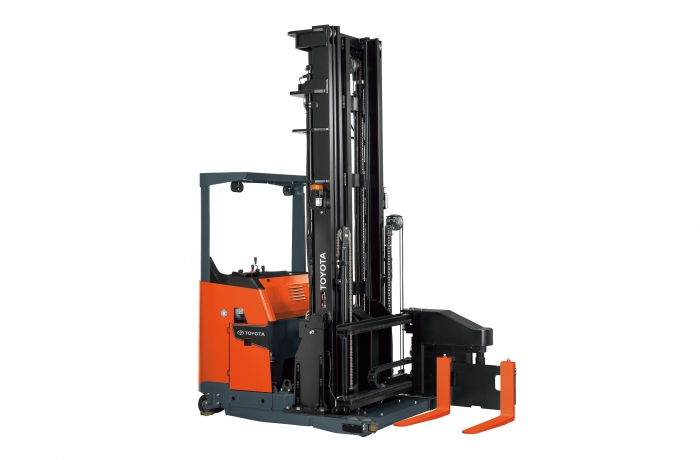

Supreme technology of forklift for warehouse management in the very narrow space with the special design of adjustable fork direction for 3 different sides, i.e., left turning fork, right turning fork and ordinary front fork. That will help minimize space utilization from turning the forklift unit to pick up cargo at only the front side as normal case. It can solve the problem of the very narrow and limited space between each shelf in the warehouse. So, it is worth that you can keep more cargo and maximize the warehouse space utilization. There are many other functions to facilitate the usage including the battery that can last longer up to 9 hours for heavy duty operation continuously.

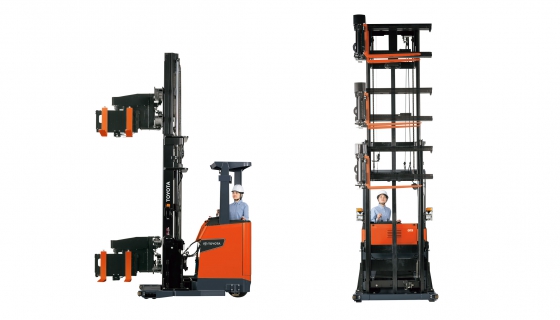

High Selector System

High technology of automatic fork height control function up to 18 levels to provide the lifting operation at higher level including the fork space estimation by laser for the accurate control.

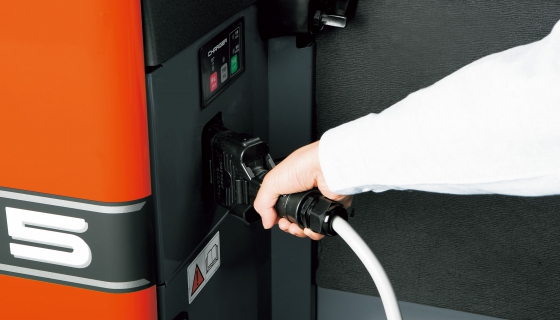

Supreme technology to control battery operation

Enhance the efficiency of battery operation with AC motor system to help the long lasting battery. The Load Handling Regenerative system will help quick power recovery while loading cargo. The function of Automatic Vehicle Speed Control will help speed adjustment for the smooth and safe operation.

SPECIFICATION

Models 8RFBA7   8RFBA10 8RFBA12 8RFBA15 8RFBAS10
(H-mast)
8RFBAS12
(H-mast)
8RFBAS15
(H-mast)
Engine Type Electric
Load Capacity kg 700 1000 1200 1450 1000 1200 1500
Load Center mm 550 550 550 550 550 550 550
Overall Width
(Pallet type 1,100 / Pallet type 1,200)
mm 1450/1550 1450/1550 1550/1650 1550/1650 1450/1550 1550/1650 1550/1650
Turning Radius (outside) mm 1580 1750 1750 1910 1910 1910 1910
Overall Length mm 2570 2750 2750 2900 2900 2900 2900
Voltage/Capacity Min V/Ah 48/280 48/280 48/280 48/320 48/390 48/390 48/390
Max V/Ah 48/370 48/445 48/445 48/445 48/445 48/445 48/445
Electric Motors Drive kW 4.9 5.2 5.2 5.2 5.2 5.2 5.2
Load Handling kW 8 11 11 11 11 11 11
