OVERVIEW

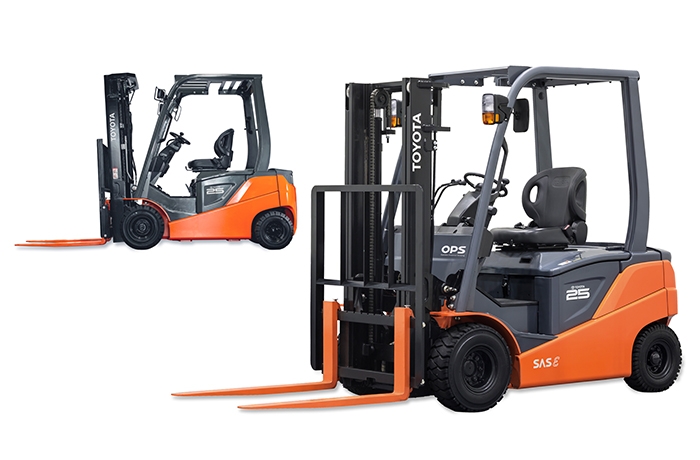

With the forklift development that focuses on balanced steering, the 8FBN is a standard vehicle that can be used in all industries with design that is easy to use and innovations that provide users convenience in steering. Therefore, it has become a popular choice for customers who are looking for quality electric forklifts which are highly flexible and easy to use.

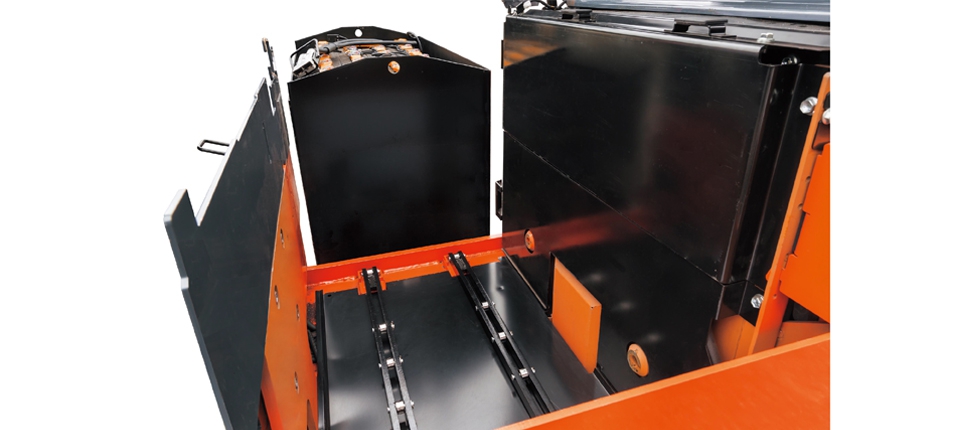

SIDE-PULL OUT BATTERY (OPTION)

The better design that allows the battery to slide out of the side of the compartment, making battery maintenance and replacement easy for you.

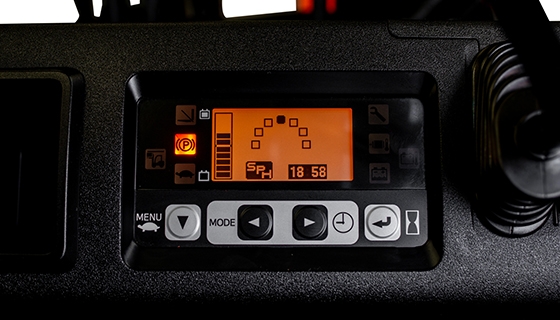

VEHICLE MANAGEMENT SUPPORT SYSTEM

Intelligent innovation that allows users to see every aspect of the vehicle including wheel angles, load weight, and automatic speed limit controller.

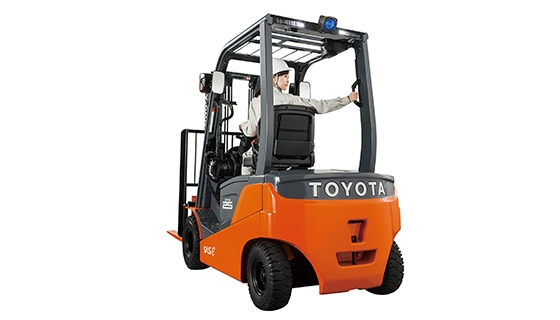

EASY AND CONVENIENT TO USE

The positioning of equipment in the compartment is designed to provide the physical comfort and reduce fatigue for the operators, allowing a wider visibility for them to work easier, safer and comfortably.

SPECIFICATION

Models 8FBN15 8FBN18 8FBN20 8FBN25 8FBN30
Engine Type Electric
Load Capacity kg 1500 1750 2000 2500 3000
Load Center mm 500 500 500 500 500
Overall Width mm 1060 1065 1180 1180 1235
Turning Radius (outside) mm 1770 1780 1980 2000 2210
Overhead Guard Height mm 2085 2095 2085 2085 2255
Length to Fork Face mm 2080 2115 2250 2325 2485
Voltage/Capacity Min V/Ah 48/390 48/390 48/470 48/565 80/370
Max V/Ah 48/565 48/565 48/725 48/725 80/480
Electric Motors Drive kW 7.6 7.6 10.7 10.7 11.9
Load Handling kW 9.5 9.5 12.2 12.2 14.4
