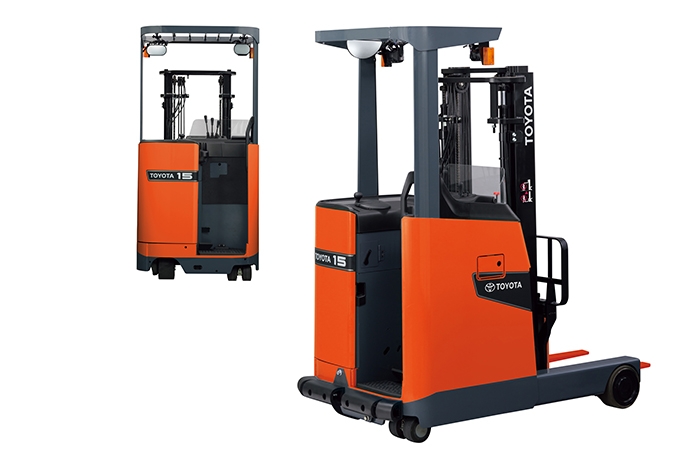

OVERVIEW

High Performance and Big Productivity in a Compact Body.

How long reach truck can be used, how safe reach truck can be…
Our challenge to create innovative truck delivers this model,
8FBR series.  Toyota's advanced technology providing long time,
cost-effective and safe operation is mounted in new designed
compact body.

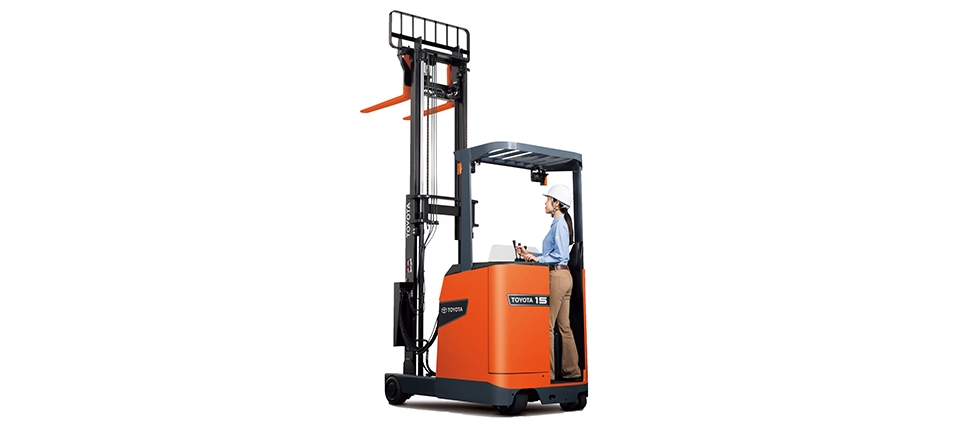

Height Selector II

The forks automatically stop at preset positions. It makes operations simple and easy. The lift height can be set at 18 different positions matched to your worksite.

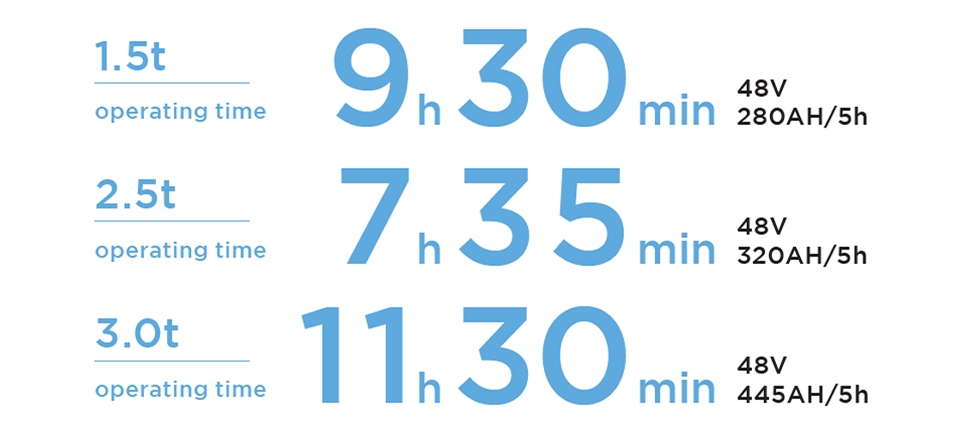

Long Operating Time

New highly efficient AC motors and motor drivers, regenerative braking that returns braking energy to the battery, and other design features achieve long operating time.

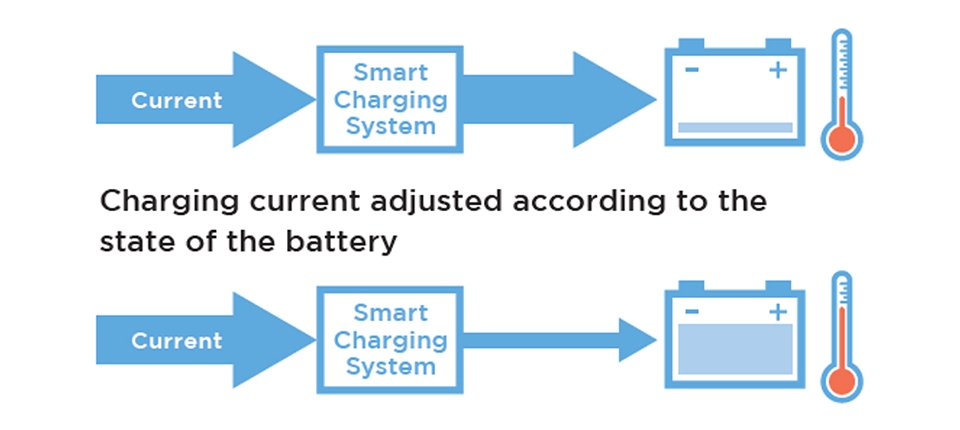

Smart Charging System

The motors and motor drivers are used to control the charging current according to the battery condition (voltage, fluid temperature, and deterioration state). This lessens battery damage and contributes less battery fluid reduction.

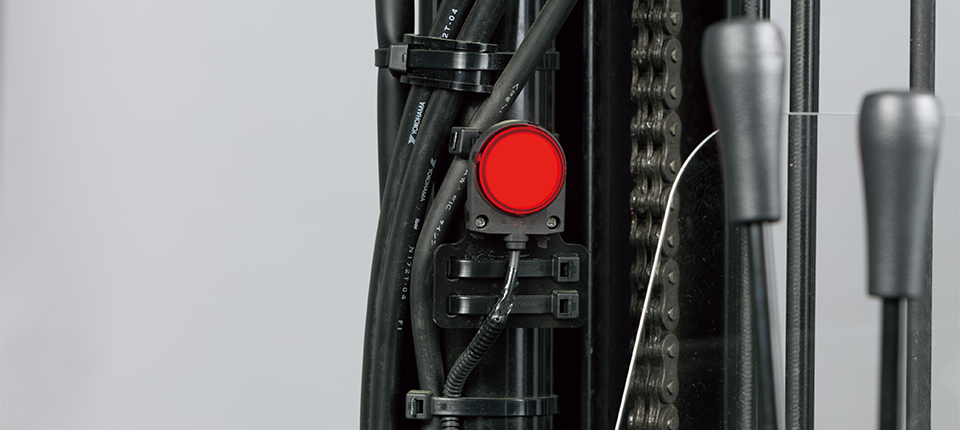

Fork Leveling Indicator Lamp

The lamp installed on the mast lights up when the forks are at level position. This helps to confirm the forks are level, even when the front view is blocked

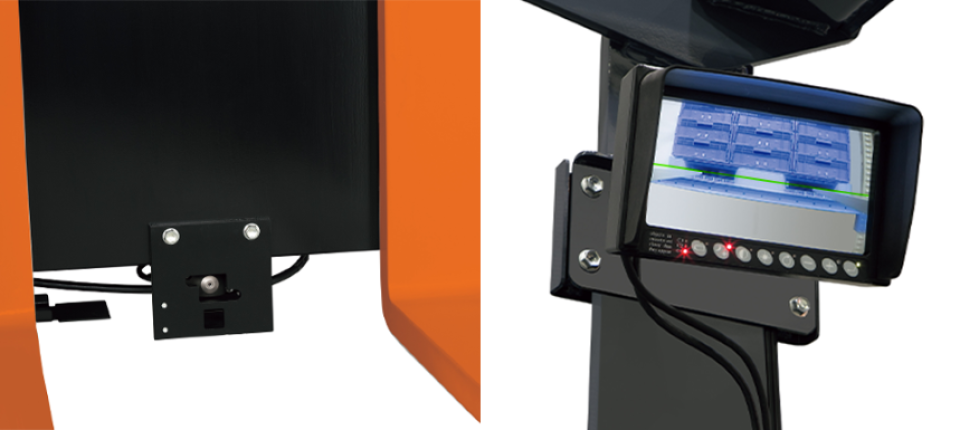

Fork View Camera

The fork tips are displayed on a monitor for easy fork insertion even at high lift height. Horizontal line displayed on the monitor indicate the fork height.

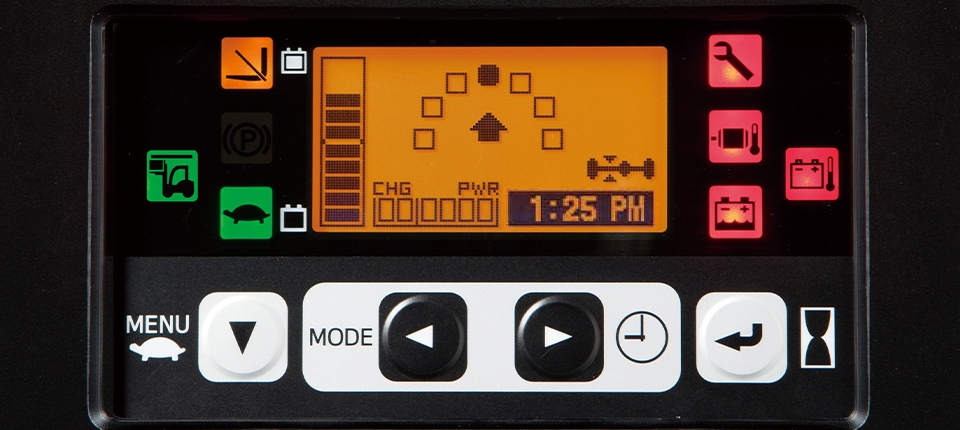

Deluxe Multifunction Display

Enables operators to assess a wide range of information about the forklift, such as travel speed and battery capacity. It also provides setting functions.

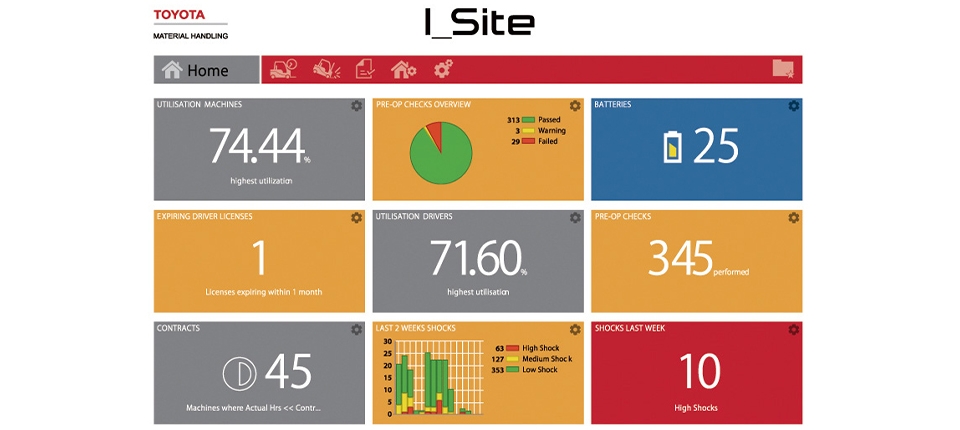

Telematics

The state of trucks operation, battery status, trucks collision information, and other data can be viewed on a computer or tablet. This can be used for improvements of worksite such as safety management, enhancement of productivity, and cost reductions.

SYSTEM OF ACTIVE STABILITY FOR REACH (SASR)

Safety innovation that controls the balance movement of forklifts when turning and lifting to ensure the highest efficiency. Meanwhile, there is a function of speed control for lifting the forks and its angle automatically to enhance the highest efficiency and productivity.

BRAKE ASSISTING SYSTEM AND TRACTION CONTROL SYSTEM

The ultimate safety technology with intelligent brake assistance in dual front wheels that makes the brakes balanced and highly stable and with a traction control system that prevents slipping while driving, giving you greater confidence at all worksites.

SPECIFICATION

Models 8FBR10 8FBR13 8FBR15 8FBR18 8FBR20 8FBR25 8FBR30 8FBRS20
(H-mast)		 8FBRS25
(H-mast)
Engine Type Electric
Load Capacity kg 1000 1250 1500 1800 2000 2500 3000 2000 2500
Load Center mm 500 500 500 500 500 500 500 500 500
Overall Width mm 1090 1090 1090 1090 1190 1190 1240 1190 1190
Turning Radius (outside) mm 1340 1490 1580 1730 1750 1950 2000 1750 1950
Overhead Guard Height mm 2250 2250 2250 2250 2330 2330 2330 2330 2330
Length to Fork Face mm 1050 1050 1155 1155 1250 1270 1320 1250 1270
Voltage/Capacity Min V/Ah 48/201 48/201 48/280 48/280 48/320 48/320 48/445 48/320 48/390
Max V/Ah 48/240 48/240 48/370 48/370 48/445 48/445 48/445 48/445 48/445
Electric Motors Drive kW 4.9 4.9 4.9 4.9 5.2 5.2 5.2 5.2 5.2
Load Handling kW 8 8 8 8 11 11 11 11 11
Power Steering kW 0.26 0.26 0.26 0.26 0.35 0.35 0.35 0.35 0.35
