OVERVIEW

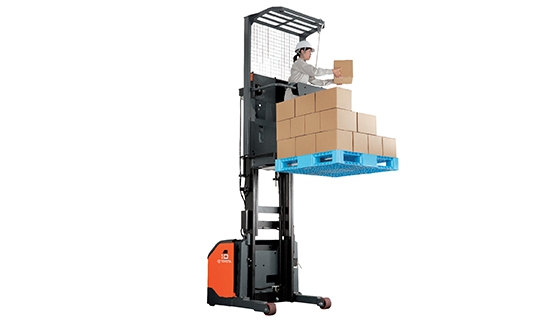

Special order picking forklifts from Toyota that provide ease and convenience for product arrangement at high level by focusing on developing truck body that has various steering support systems which will enhance stability when driving and reduce shaking while lifting products. The vehicle's weight centre is also better distributed to ensure safety during operations. Further, the battery has been enhanced to allow for long daily operations.

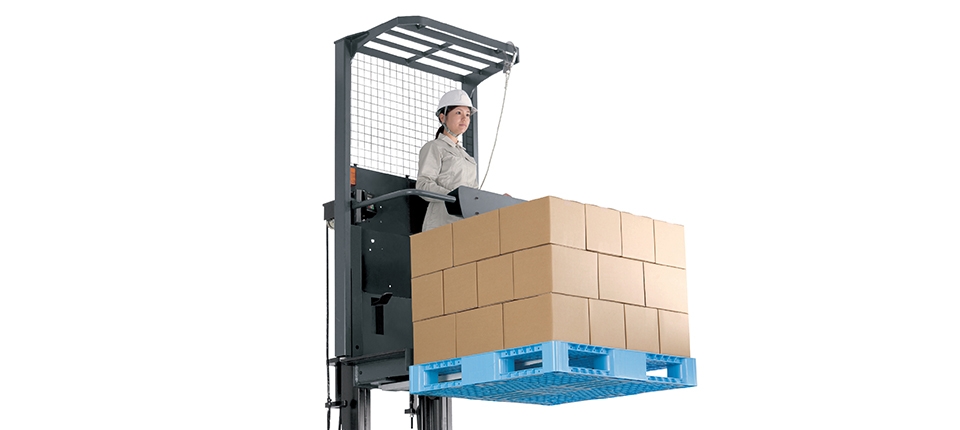

THE ULTIMATE BALANCE WHEN LIFTING PRODUCTS

Innovative design of the forklifting control system that reduces vibration while lifting with an automatic locking system of pallets to ensure the highest balance and safety in all operations.

HIGH SELECTOR SYSTEM

Automatic lift-height positioning for up to three levels for convenient high lifting and loading.

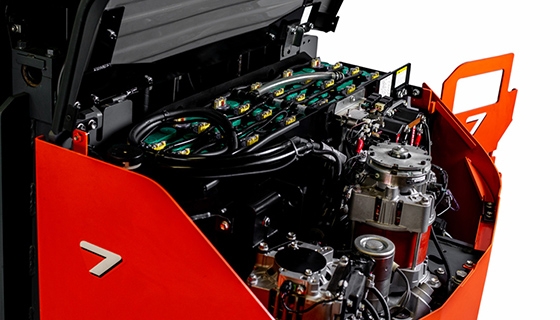

THE ULTIMATE TECHNOLOGY FOR BATTERY CONTROL

Enhance battery performance with the best AC motor system that maintains battery power for long operating time. The Load Handling Regenerative System will recharge the electrical power while operating as well as the special function of Automatic Vehicle Speed Control will help adjust the speed of forklift automatically for the smooth & safety operations.

SPECIFICATION

Models 8FBP7 8FBP9 8FBP10 8FBP15 8FBPK7 8FBPK9 8FBPK10
Type Standard Model Compact Model
Load Capacity kg 700 900 1000 1500 700 900 1000
Load Center mm 500 500 600 600 500 500 600
Overall Width mm 1090 1090 1090 1090 1090 1090 1090
Turning Radius (outside) mm 1420 1420 1420 1520 1225 1225 1245
Overhead Guard Height mm 2115 2115 2115 2115 2115 2115 2115
Length to Fork Face mm 1535 1535 1535 1645 1315 1315 1315
Voltage/Capacity Min V/Ah 48/165 48/201 48/201 48/240 48/165 48/201 48/201
Max V/Ah 48/240 48/240 48/240 48/280 48/240 48/240 48/240
Electric Motors Drive kW 4.9 4.9 4.9 4.9 4.9 4.9 4.9
Load Handling kW 8 8 8 8 8 8 8
