OVERVIEW

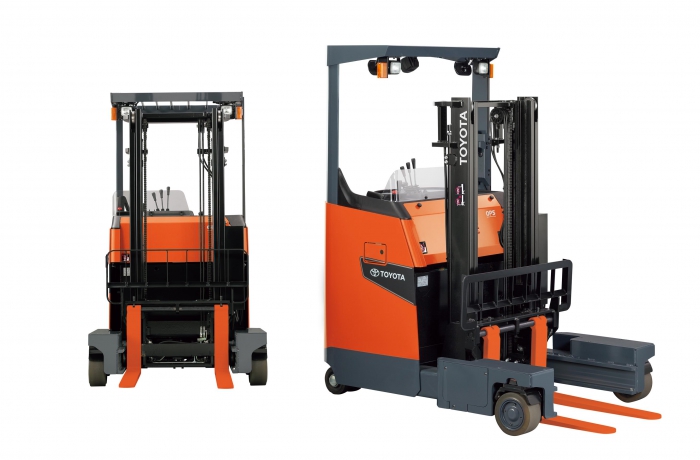

New innovation of electric powered reach truck for warehouse operation that its body has been developed and designed for compact size, but fulfilled with high efficiency of wheel controlling motor that enables free moving at all directions. So, it is worry-free for the turning angle in the narrow area and can keep more space for cargo in the warehouse. In addition, there are many other functions to provide more comforts for users to handle the cargo including the battery that can last longer up to 9 hours for heavy duty operation continuously.

Moving at all directions freely with no limitation

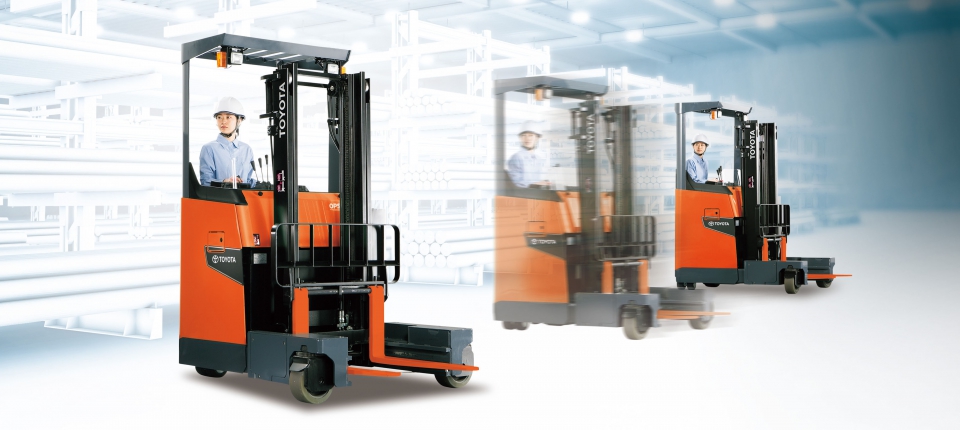

Touching the new driving experience with wheel controlling motor that enables movement at all directions freely including side way or oblique way to minimize turning space. That will be suitable for narrow space warehouse operation.

Supreme technology to control battery operation

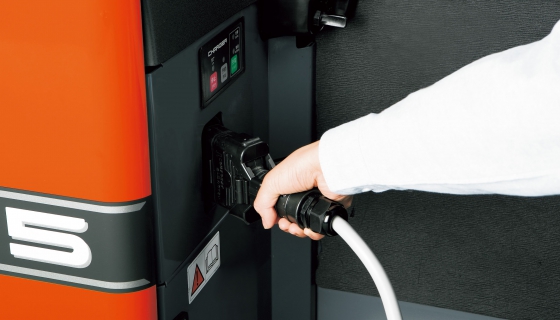

Enhance the efficiency of battery operation with AC motor system to help the long lasting battery. The Load Handling Regenerative system will help quick power recovery while loading cargo. The function of Automatic Vehicle Speed Control will help speed adjustment for the smooth and safe operation.

Easy and comfortable usage

The innovative design of the driver cabin to focus on operation efficiently. The positioning of various equipment will provide the natural comfort for every physical shape of the driver as well as providing the wider visualization for easy, safe and comfortable operation.

SPECIFICATION

Models 8FBS10 8FBS13 8FBS15 8FBS18 8FBS20 8FBS25 8FBSS20
(H-mast)		 8FBSS25
(H-mast)
Engine Type Electric
Load Capacity kg 1000 1250 1500 1800 2000 2500 2000 2500
Load Center mm 500 500 500 500 500 500 500 500
Overall Width mm 1240 1240 1240 1240 1365 1365 1365 1365
Turning Radius (outside) mm 1185 1185 1225 1225 1270 1285 1270 1285
Overhead Guard Height mm 2250 2250 2250 2250 2330 2330 2330 2330
Length to Fork Face mm 1050 1050 1155 1155 1250 1270 1250 1270
Voltage/Capacity Min V/Ah 48/201 48/201 48/280 48/280 48/320 48/320 48/320 48/390
Max V/Ah 48/240 48/240 48/370 48/370 48/445 48/445 48/445 48/445
Electric Motors Drive kW 4.9 4.9 4.9 4.9 5.2 5.2 5.2 5.2
Load Handling kW 8 8 8 8 11 11 11 11
